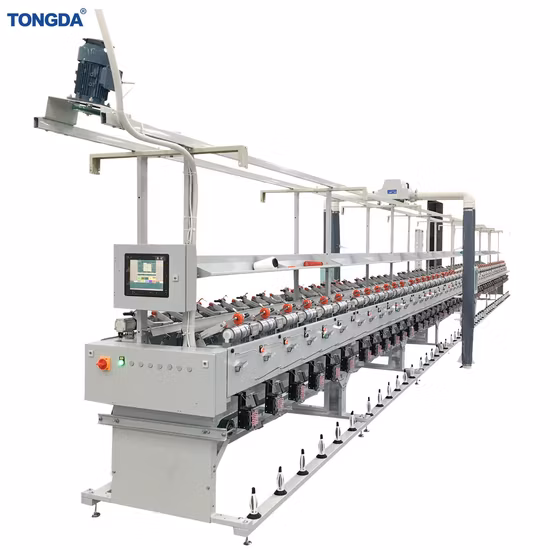

Tongda Td
Finishing and dyeing system solutionsTONGDA Group was founded in 1952.It specializes in design, manufacturing, and marke
Basic Info.
| Model NO. | TD-DSB |
| Customized | Customized |
| Condition | New |
| After-sales Service | 1year |
| Design Capacity | 50-500 |
| The Host Pumps Power | 3-18kw |
| Master Cylinder Diameter | 900-1600 |
| Elevation of Temperature Speed | 5ºC Minute( by 0.6MPa Computation |
| Highest Operating Temperature | 100c |
| Transport Package | Export Package |
| Specification | 1040*730*1890mm |
| Trademark | tongda |
| Origin | China |
Product Description
Finishing and dyeing system solutionsTONGDA Group was founded in 1952.It specializes in design, manufacturing, and marketing of a wide range of Textile machinery, mainly produces ring pinning production line, open end spinning machine, non-woven machinery ,dyeing machine etc.The company has built a complete infrastructure to support a full effort for product research and development to satisfy the needs of the marketplace.DESIZING, SCOURING & BLEACHING MACHINE
It is applied to continuous process of desizing, scouring & bleaching for cotton, P/C, linen and their blends, to get rid of impurity in the raw fabric like pulp, greasy dirt, and pectin. The absorption, whiteness will be improved to meet the high requirement of dyeing and printing process. SUITABLE VARIETIES cotton and blends, Apparel fabrics including yarn dyed fabric, hometextile fabrics and etc. FEATURES - Building block structure applies to techniques of different fabric in different processing technology.- Patent High Add-on system, ensures the chemical impregnating efficiently and evenly. - Sufficient pre-heating time to make sure stability of chemical reaction. - Optimized and precise design, thermal insulation covering ensures the low steam consumption I Latest washing chamber design ensures the higher washing efficiency, minimize the water consumption. -Precise chemical dosing system ensures the consistency and stability of high fabric quality. -Intellectualized control System to keep the machine in optimized status all the time| TECHNICAL SPECIFICATION | |
| Roller width | 1600-3600mm |
| Machine speed | 15-120m/min |
| Drive control method | PLC, Inverter control AC drive |
| Fabric weight | 100-450gsm |
| Mode of cloth feeding and delivery | Open width form through trolley or batch |
MERCERIZING RANGE
It is applied to open width form cotton, linen & their blends, in the condition of strong caustic soda solution with tension to obtain stable dimension, durable shines, promote absorption of dyes evenness. Good mercerize process can reduce the dye consumption upto 30%. SUITABLE VARIETIES cotton and blends, Apparel fabrics including yarn dyed fabric, home-textile fabrics and etc. FEATURES - High speed Mercerizing concept ensures the high production efficiency -High efficiency caustic impregnating squeezing unit ensure the low caustic consumption -Latest washing chamber design ensures the higher washing efficiency, reduce the water consumption. -Intellectualized control System to keep the machine in optimized status all the time, ensure the stability of production.| ECHNICAL SPECIFICATION | |
| Roller width | 1600-3600mm |
| Machine speed | 15-120m/min |
| Drive control method | PLC, Inverter control AC drive |
| Fabric weight | 80-400gsm |
| Mode of cloth feeding and delivery | Open width form through trolley or batch |
CONTINUOUS DYEING MACHINE
It is applied to open width form cotton, linen & their blends, Dyeing through disperse, reactive, vat dyes and etc. continuously and stable.Cotton and blends, Apparel fabrics including yarn dyed fabric, home-textile fabrics and etc.FEATURES-Precise machine design ensures the production from high count and density fabric to very raw and heavy fabric- Feasible structural design ensures the variety of processing requirement- Precise manufacturing ensures the stability of the dyeing quality-Latest hot flue flow design and new reduction steamer entry design ensure the dyeing evenness and low steam consumption-Latest washing chamber design ensures the higher washing efficiency and color fixation.| TECHNICAL SPECIFICATION | |
| Roller width | 1600-3600mm |
| Machine speed | 15-120m/min |
| Drive control method | PLC, Inverter control AC drive |
| Fabric weight | 80-400gsm |
| Mode of cloth feeding and delivery | Open width form through trolley or batch |
WASHING MACHINE
It is applied to open width form cotton. linen & their blends, after desizing, printing or dyeing washing to eliminate all kinds of sizing chemicals, unfixed dyes and chemicals remained on the fabrics FEATURES- After printing washing adpots new full boiling process. with low water consumpotion and high higher color fastness characteristic - Ultrasonic washing machine, ultrasonic emulsification and dispersion function, Improve washing efficiency| ECHNICAL SPECIFICATION | |
| Roller width | 1600-3600mm |
| Machine speed | 15-120m/min |
| Drive control method | PLC, Inverter control AC drive |
| Fabric weight | 80-400gsm |
| Mode of cloth feeding and delivery | Open width form through trolley or batch |
SINGEING MACHINE
It is applied to open width form cotton, linen & their blends, to remove the fluff from the surface.It prevents unequally and blemish during bleaching, dyeing and printing process.FEATURES- Can be used for wide varieties of fabrics - Fine effect of singeing -The control technical is advanced. Uses AC frequency conversion transmission and PLC control system - High efficiency burner fits different fuel and ensure low fuel cost| TECHNICAL SPECIFICATION | |
| Roller width | 1600-3600mm |
| Machine speed | 72-125m/min |
| Fuel | Gasoline LPG, nature gas or coal gas |
| Brushing box | 1 pairs of brush roller, 1 pair of emery roller and dust exhaust fan |
| The burner and fabric angle can be adjusted easily The burner is controlled automatically through program Burner: 4 burners can be setted as 2 positive and 2 reverse(or 1positive and 1 reverse, 4 positive) | |
COLD PAD BATCH DYEING MACHINE
It is used for cold pad batch dyeing process of cotton, flax and their blendings. FEATURES - It adopts high- quality low liquid level control to minimize the liquid volume. - It is equipped with refrigerating device to delay the hydrolysis speed of reactive dye liquid. - The dye liquid will be cooled in feeding buffer tank. -The fabrics will be cooled by cooling rollers before entering the dyeing tank, the surface temperature will be reduced. The cooling of fabric surface is important as the cooling of dye liquid. -In order to keep the pick up rate and its uniformity, it adopts centre batching device, the special structure achieves touchless between and fabric surface on batch package feeding roller. - The dyeing padder is uniform pressure padder and adopts oil pressure mode.| TECHNICAL SPECIFICATION | |
| Roller width | 1600-3600mm |
| Machine speed | 15-70m/min |
| Drive control method | PLC, frequency conversion AC driving |
| Fabric weight scope | 100-450g/m, 100% cotton |
| Dosing pump | 1:4 |
| Fabric delivery type | Centre batching |
WEIGHT REDUCTION MACHINE
This machine utilizes the soda's weight reduction effect on polyester fiber to change the grid structure of fabrics so as to improve the fabric handle and style FEATURES - Continuous operation mode, high productivity - Lower caustic soda consumption - Auto detection and supplement of soda concentration ensures there is no difference of liquid concentration from start to finish. - Sampling at any time for determination which is convenient for weight reduction rate control - High efficiency washing, clean fabric surface| TECHNICAL SPECIFICATION | |
| Roller width | 1800-3600mm |
| Machine speed | 15-80m/min |
| Drive control method | PLC, frequency conversion AC driving |
| Weight reduction rate | 15-40 min |
| Steaming temperature | 100-105C |
| Fabric inlet and outlet type | open-width single layer or double layers |
SANFORIZING MACHINE
FEATURES - High reliability: perfect design, imported key components, fine machining, accurate assembly and experienced commissioning engineer ensure the good performance of machine. - Advanced technology: good sanforizing ability with 18% preshrunk rate, which stabilizes the water shrinkage of finished fabrics around 1%. - Easy operation: touch screen tune control system, each parameter can be displayed and set on the screen. - Mature control technology: the electrical part adopts full closed loop, PLC control, multiunit AC frequency speed control to achieve accurate synchronous control, constant tension, stable shrinkage rate. - Fleshy hand-feeling of fabric surface: soft hand-feeling and clear lines of finished products will improve added value of fabrics. - Lower labor intensity: the compacting and hoisting of rubber blanket adopt motor-driven operation which will improve the production efficiency. -Perfect safeguards: photoelectrical auto protection and manual safety protection devices ensure the safety of operators.| TECHNICAL SPECIFICATION | |
| Roller width | 1800-3600mm |
| Shrinking rate | Max. 18% |
| Water shrinkage | adjustable according technics requirement, Min. 0-1% |
| Speed | 5-80m/min |
| Rubber blanket | thick 67mm |
